High Viscosity Medium Lubricating Oil Case Pump And Liquid Machinery

Name: High Viscosity Medium Lubricating Oil Case Pump And Liquid Machinery
Brand: FIMEET
Price: 1 USD

High Viscosity Medium Lubricating Oil Case Pump And Liquid Machinery Manufactures

Brand Name : FIMEET

Certification : ISO9001

Place of Origin : Botswana

Price : $1,150.00(1 - 9 Sets) $860.00(>=10 Sets)

Supply Ability : 10 Piece/Pieces per Day

MOQ : 1 Set

Packaging Details : one pc by carton/non-fumigated wooden case

Type : Filling Machine

Applicable Industries : Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Energy & Mining

Showroom Location : None

Condition : New

Application : Chemical, Food, Machinery & Hardware, Medical, Beverage

Packaging Type : case

Packaging Material : Wood

Automatic Grade : Automatic

Driven Type : Electric

Voltage : 220V/50HZ, 220v, 380v

Dimension(L*W*H) : 650*550*850mm

Weight : 100kg

Warranty : 1 Year, One Year

Key Selling Points : Easy to Operate

Machinery Capacity : 200BPH

Filling Material : Oil

Marketing Type : New Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Motor, Pump, PLC, Flow meter

Maximum accuracy range : Â±0.5%

Flow rate : 1-10L

Environment temperature : -20~+50â„ƒ

Medium : Adblue, Urea, Gasoline, Diesel and other liquid

Name : oil filling machine

Function : Forming

Product name : oil fuel dispenser, automatic olive oil filling machine

Usage : Chemical

After Warranty Service : Online support

Local ServiceÂ Location : None

After-sales Service Provided : Online support, Video technical support

Contact Now

Product Description

High Viscosity Medium Lubricating Oil Case Pump And Liquid Machinery

Product Application

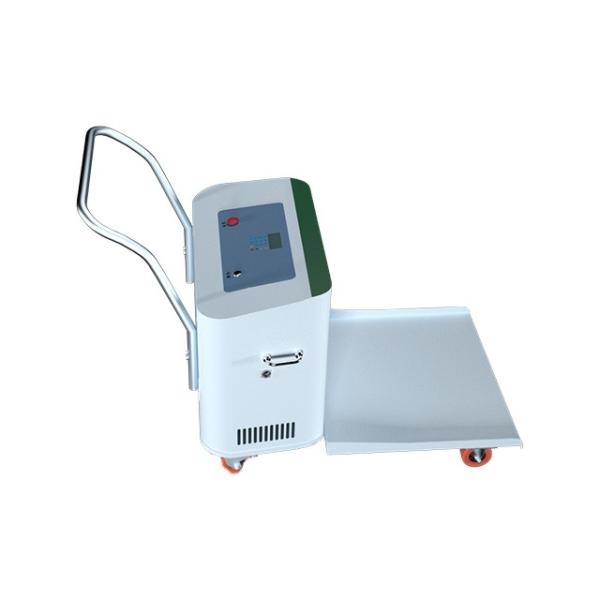

BJJ-20-AR1D Type lubricating oil tanker is an electronic automatic filling equipment, with small type, good performance, compact design, high overall efficiency, accurate measurement, long service life, easy to move and other characteristics. It is mainly used for conveying oil, lubricating oil, edible oil, gear oil, cutting fluid and other high viscosity medium in industrial and mining enterprises, transportation, small and medium-sized oil depot and other industries.

SPECIFICATIONS FOR Oil Filling Machine
Model No.:	AR1	Accuracy:	±0.5%
Flow range:	10-30L/min	Max.pressure:	4 Bar
Voltage:	AC 220v/380v	Single Range:	0.0-99999.9L
Suction/Lift:	25m/25m	Accumulative Range:	0-99999L
Total weight:	55kg	Range of Price:	0.00-$99.99
Temperature range:	-20°c-50°c	Total Amount Range:	0-$99999
Inhalation caliber:	25mm	Measure Minimum:	5L
Discharge caliber:	20mm	Size:	650550850mm
Medium	Engine, Motor, Oil, Lubricating and other liquid.

Main Features

For the reason that our First generation mechanical filling machine has been copied, our company updated the products series with 10 updated points under the price not increased.

1. More attracting appearance;
2. Increasing the thickness of the shell;
3. Good at Resistant high temperature: 50℃ Test;
4. With functions of integer and non integer quantitative refueling;

5.The standard of excellent accuracy measuring accuracy can reach 0.5%;
6. Professional All of our filling machine are Handcart type design;
7. Two way control valves to ensure the precise control of a small amount of fuel;

8. Our design is much compact, layout is more reasonable, increasing the operation efficiency;
9. With Double-layer steel wire mesh, wear-resisting, corrosion resistance, pressure resistant tubing;
10. Choosing new type electromagnetic switch,greatly enlarging using safety and stability and prolong the using life.

Factory Show

Canton Fair

120th Canton Fair

Meet every year of Canton Fair

121th Canton Fair

and Still to be continued......

122th Canton Fair

Detailed Images

Oil Filling Machine Size Map and Internal Structure Show.

Machine Parts

Name: Oil Filling Machine;

Brand: FIMEET;

6 Digits LCD Display;

Show Unit Price, Total Amount, Total Volume.

Machine Parts

Lift Handle;

All English and Arabic Numeral Panel;

3 Version of Computer Motherboards, Work Independently;

All-Round Visual Mirror, Monitoring Fuel Volume At Any Time.

Machine Parts

Lock With Metal Key;

Install a handcart.

Internal Structure

Link with Big Power Motor.

Standard Configuration

1 Set Manual;

5M Inlet Pipe;

5M Output Pipe;

1 Set 11A Automatic Fuel Nozzle.
